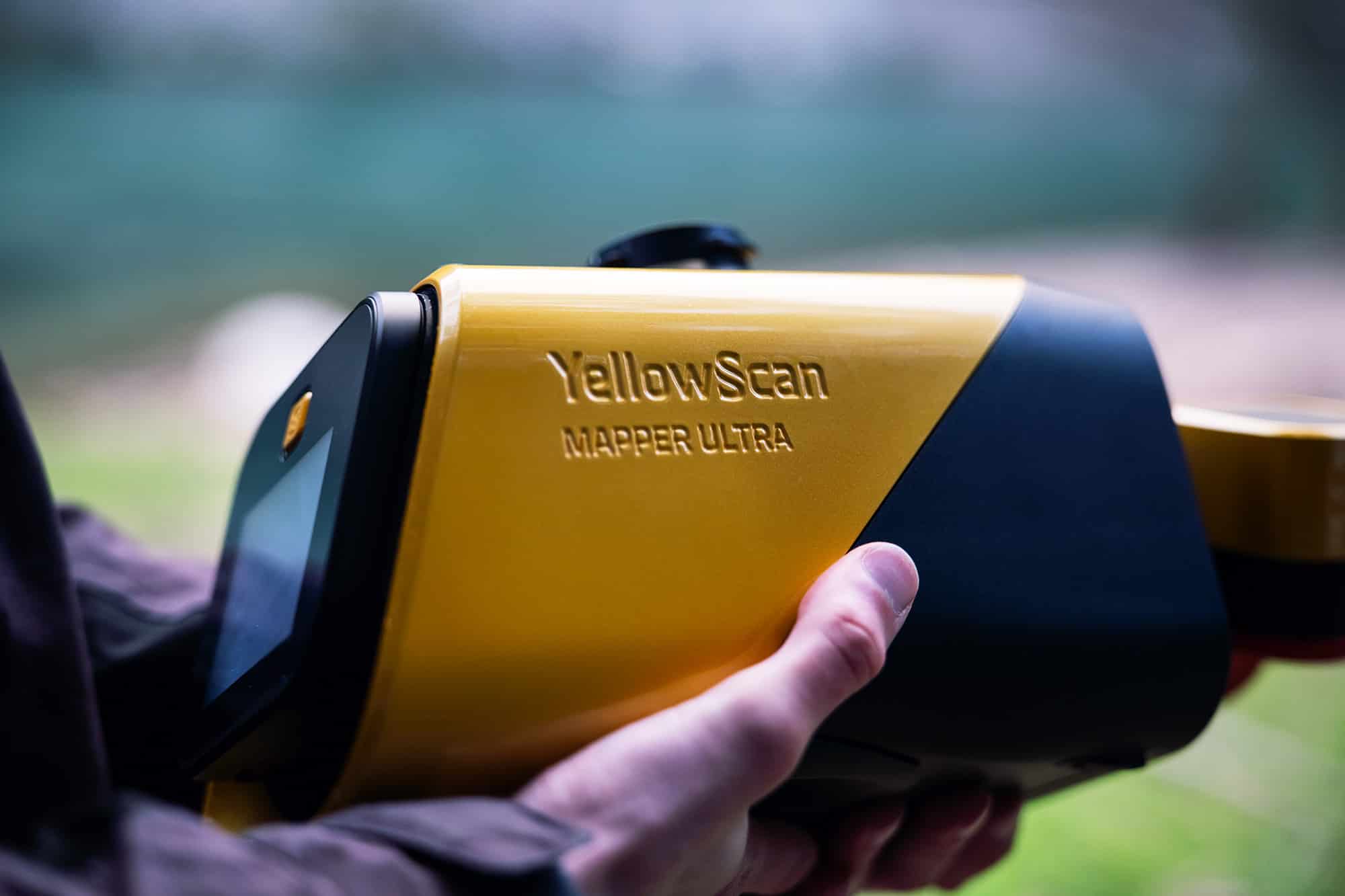

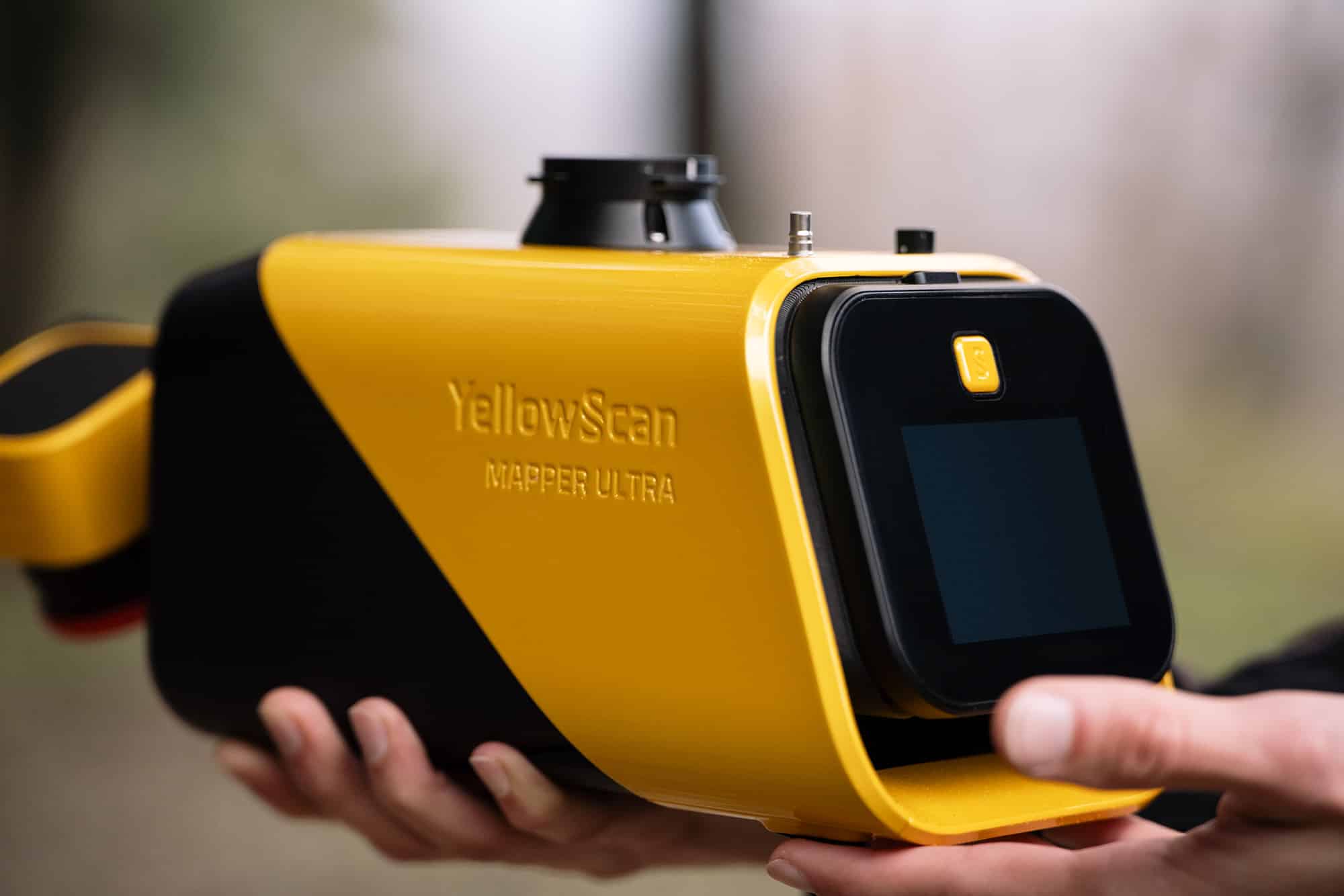

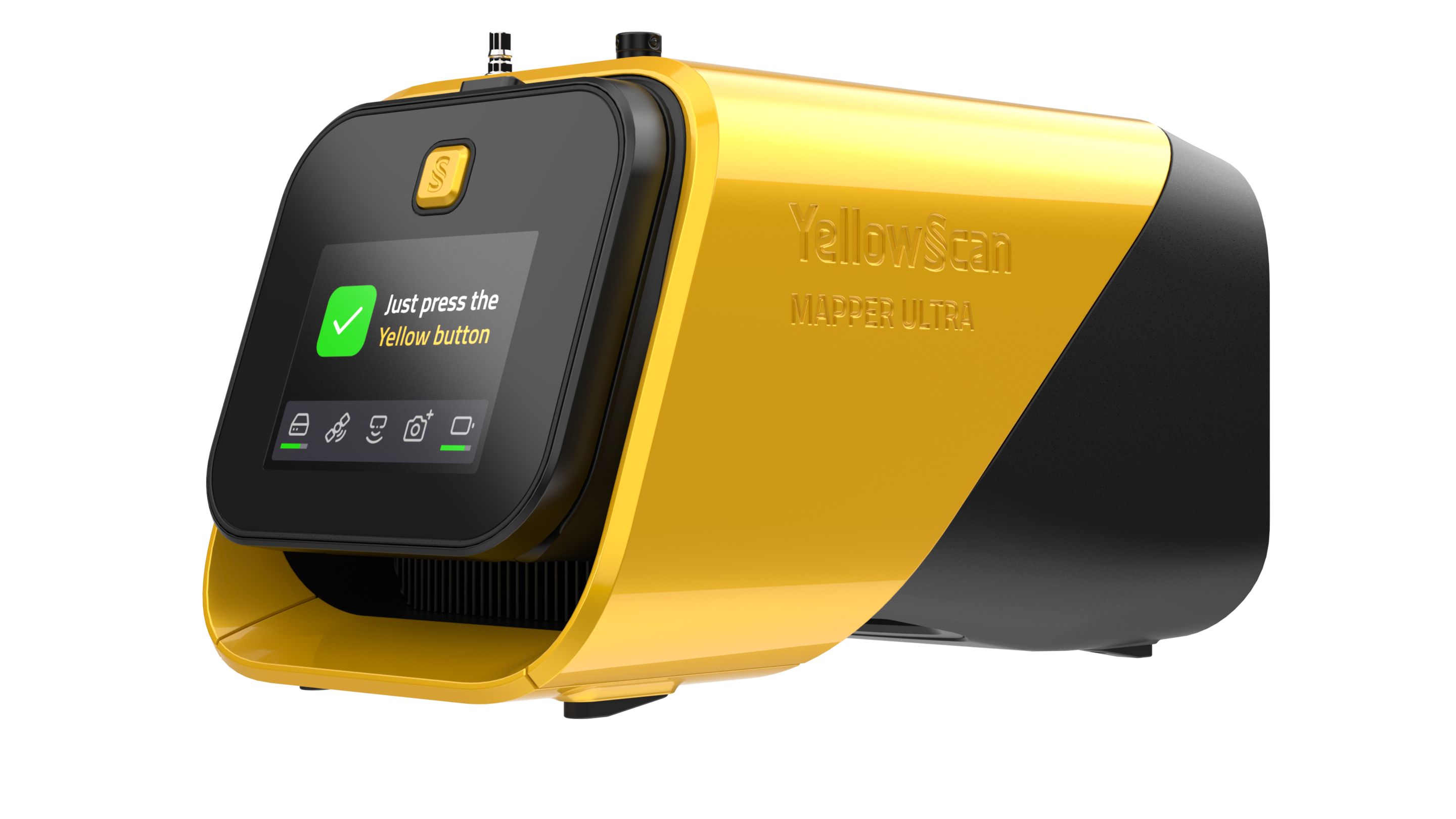

YellowScan Mapper Ultra
Go further. See through. Map faster.
The YellowScan Mapper Ultra is designed for high-performance aerial mapping.
With its long-range capability, lightweight design, and high-altitude efficiency, it enables professionals to cover large areas more quickly.
Its powerful multi-echo technology ensures accurate data and excellent penetration through vegetation, making it ideal for demanding corridor mapping projects.
Designed to innovate.
In-house technologies
Key differentiators
- 7 echoes
- Long range
- Quick coverage
-

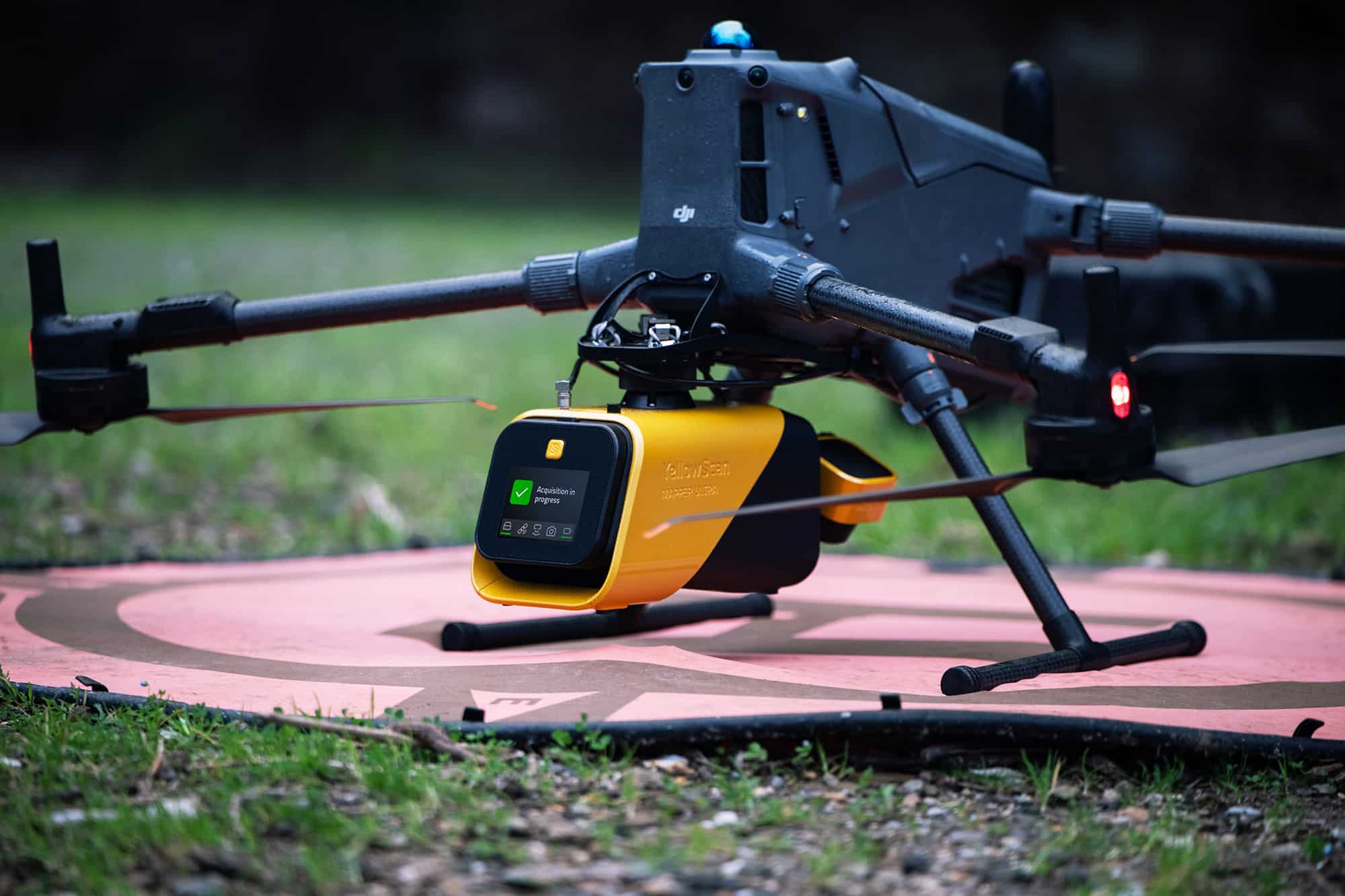

Integration with UAVs
- Single-rotor UAV
- Multirotor UAV
- UAV VTOL
- Fixed-wing UAV
Solución GNSS inercial: SBG Quanta Micro
The YellowScan Mapper Ultra features an SBG Quanta Micro inertial GNSS solution that ensures high precision and accuracy of 2.5 cm. Its multi-echo technology allows for the capture of up to 7 echoes per shot, significantly improving data quality, especially in environments with dense vegetation. In addition, it is capable of generating up to 500,000 shots per second, reaching a maximum of 3,500,000 points per second under optimal conditions.
Operational performance and procurement capacity
In terms of operational performance, the system offers a scan rate of between 50 and 250 lines per second and a typical flight speed of 10 m/s. It can operate at a typical flight altitude of up to 241 meters, although the maximum recommended altitude is 120 meters, depending on acquisition conditions. At an altitude of 50 meters and a speed of 5 m/s, it is capable of achieving a density of up to 150 points per square meter.
Laser Sensor Specifications and Data Acquisition
The laser sensor has a range of up to 640 meters and operates at a wavelength of 1535 nm, with a field of view of 75°. These features enable the capture of detailed data over large areas while maintaining good ground penetration. The system also incorporates an RGB camera with a global shutter, which facilitates the acquisition of complementary visual information.
Physical characteristics and operating conditions
The laser sensor has a range of up to 640 meters and operates at a wavelength of 1535 nm, with a field of view of 75°. These features enable the capture of detailed data over large areas while maintaining good ground penetration. The system also incorporates an RGB camera with a global shutter, which facilitates the acquisition of complementary visual information.
Package contents
Hardware
- YellowScan Mapper Ultra
- 2 batteries
- Hard-sided case
- GNSS antenna and cable
- 2 USB flash drives
- Documentation
Services
- 1-year warranty and unlimited technical support
- Formación presencial u online
- Calibration Certificate (Boresight)
Software
- SBG Qinertia (GNSS and inertial processing)
- CloudStation Essential (Data Viewing and Export)
Optional accessories
- Freestanding mounting bracket with quick-release mechanism
- YellowScan LiveStation (real-time LiDAR monitoring)
- RGB camera modules (single or dual)
- Warranty Extensions and Support
Additional software
- CloudStation Pro: Data Quality Improvement, Classification, and Color Coding
- CloudStation Ultimate: All features enabled, orthophoto generation, and automated processing
SPECS
Specifications
- Inertial GNSS Solution: SBG Quanta Micro
- Echoes per shot: 7
- Accuracy: 2.5 cm
- Precision: 2.5 cm
- Frames per second: 500,000
- Scan frequency: 50–250 lines per second
- Typical flight speed: 10 m/s
- RGB camera: built-in with global shutter
- Typical flight altitude: 241 m
- Typical flight altitude: 241 m
- Point density: 150 points/m² at 50 m AGL and 5 m/s
- Battery life: ~1 hour
- Laser range: 640 m
- Laser wavelength: 1535 nm
- Scanner field of view: 75°
- Maximum data generated: 3,500,000 points per second
- Weight: 1,950 g (without battery)
- Dimensions: 25.1 × 13.3 × 14.7 cm
- Power consumption: 50 W
- Operating temperature: -10 to +40 °C
